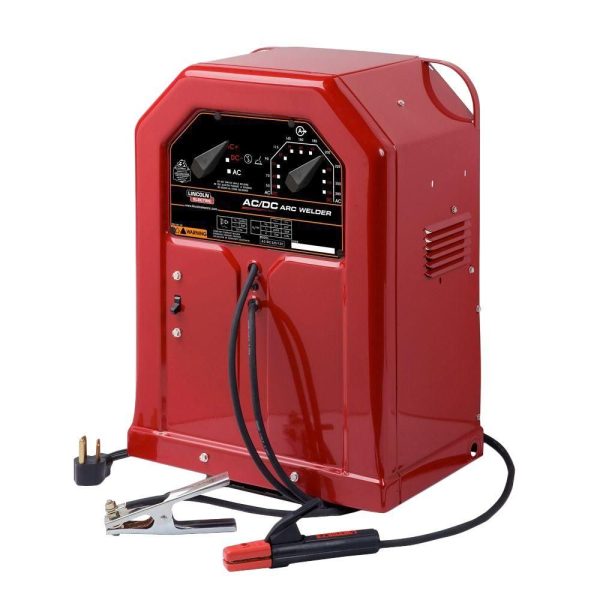

Lincoln Electric – 225 Amp AC and 125 Amp DC Arc/Stick Welder AC/DC 225/125, Single Phase, 230V
230-Volt input, 225 Amp AC output, 125 Amp DC output
Front mounted AC/DC polarity switch & full range amperage switch
Easy to weld on a variety of metals using different electrodes
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $46.00 /week*
- Details
- Additional Information
- Specifications
Description
The Lincoln Electric AC/DC 225/125 Welder features both AC and DC welding arcs with broad output ranges for versatile use. Ideal for jobs that require top arc-welding performance, the welder can be used for maintenance repair, fabrication, construction and other applications. The welder is great for use with a variety of variety of metals, including stainless steel, steel and cast iron
- For use with metals 16-Gauge and heavier
- Ideal for maintenance repair, fabrication, construction, erection, hard surfacing and other applications
- 1/8 in. wire Dia
- Broad output ranges: AC 40-225 Amp, DC 30-125 Amp
- 225 Amp AC output enough for 3/16 in. (4.8 mm) Dia general purpose mild steel electrodes
- NEMA rated, UL listed and CSA approved
- Click here for more information on Electronic Recycling Programs
- California residents
- see Prop 65 WARNINGS
| Manufacturer | Lincoln | |
|---|---|---|
| Specification | ||
| Maximum welding wire size (in.) | ||
| 0 | ||
| Product Depth (in.) | ||
| 15 | ||
| Product Height (in.) | ||
| 25 | ||
| Product Width (in.) | ||
| 17.25 | ||
Details |
||
| Duty Cycle (%) | ||
| 20 | ||
| Engine Power | ||
| Electric (DC) | ||
| Hertz (Hz) | ||
| 60 | ||
| Included | ||
| No Additional Items Included | ||
| Input Power (Volts) | ||
| 230 | ||
| Material Application Thickness (in.) | ||
| 0.225 | ||
| Maximum Rod Size (in.) | ||
| 0.125 | ||
| Maximum amperage output (amps) | ||
| 225 | ||
| Minimum amperage output (amps) | ||
| 30 | ||
| Minimum welding wire size (in.) | ||
| 0 | ||
| Process Application Type | ||
| AC Stick (SMAW),DC Stick (SMAW) | ||
| Rated Output (Volts) | ||
| 25 | ||
| Returnable | ||
| 90-Day | ||
| Tools Product Type | ||
| Power Tool | ||
| Welder Type | ||
| Stick | ||
Warranty / Certifications |
||
| Manufacturer Warranty | ||
| 3 years, parts and labor | ||
