Mackie 1604VLZ4 Kit
- For Sound-Reinforcement Applications
- 16x Onyx Preamps
- 3-Band EQ
- LED Meter
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $60.00 /week*
- Details
- Additional Information
- Specifications
Description

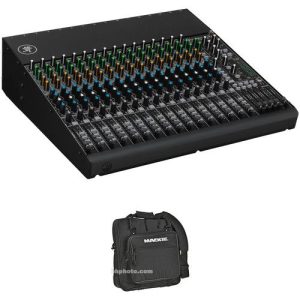

This B&H Kit combines the Mackie 1604VLZ4 16-Channel 4-Bus Mixer with a padded mixer bag to form a mobile mixer solution for bands, theaters, dance troops, bars, and mobile performance applications. The 1604VLZ4 includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature a boutique-quality Onyx microphone preamplifier, a 3-band EQ with sweepable mids, a line input, and an insert in a compact 4-bus design built for application flexibility and professional performance. The mixer is built like a tank, with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities.
This B&H Kit combines the Mackie 1604VLZ4 16-Channel 4-Bus Mixer with a padded mixer bag to form a mobile mixer solution for bands, theaters, dance troops, bars, and mobile performance applications. The 1604VLZ4 includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature a boutique-quality Onyx microphone preamplifier, a 3-band EQ with sweepable mids, a line input, and an insert in a compact 4-bus design built for application flexibility and professional performance. The mixer is built like a tank, with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities.nThe padded mixer bag is made to carry and protect the 1604VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.
The Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature an Onyx microphone preamplifier, line input and insert in a compact 4-bus design built for application flexibility and professional performance.nThe mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities.
16-Channel mixer featuring high-headroom, low-noise design
16 Boutique-Quality Onyx Microphone Preamps:nWide 60 dB gain rangen128.5 dB dynamic rangen+22 dBu line input handlingnExtended frequency responsenDistortion under 0.0007% (20 Hz to 50 kHz)
Improved RF rejection, suitable for broadcast applications
Phantom power for condenser microphones
16 high-headroom line inputs with +4 / -10 operation control
16 balanced inserts suitable for integrating outboard gear
3-band EQ with sweepable midrange
18 dB/octave 75 Hz low-cut filter on microphone input channels
Four AUX sends, level, pan and solo and overload / mute LEDs on each channel
Four stereo returns, eight direct outs and four group / bus outputs
60mm long-wearing log-taper faders
Control room / phones multi-input source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
Built-like-a-tank rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
Rack-mountable design with 3 physical configurations via Rotopod accessory (sold separately)
Multi-voltage power supply for worldwide use
Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multi-track studio and field recording, video post-production, multimedia applications, broadcast, and many more
UPC: 663961039818
The Mackie 1604 VLZ D Mixer B is a mixer tote bag made to carry and protect the 1604 VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.
Foam padded mixer tote
Mackie 1604 VLZ Pro mixer
UPC: 889406825062
Phantom power for condenser microphones
The Mackie 1604 VLZ D Mixer B is a mixer tote bag made to carry and protect the 1604 VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.
Foam padded mixer tote
Mackie 1604 VLZ Pro mixer
UPC: 889406825062
Phantom power for condenser microphones
The Mackie 1604 VLZ D Mixer B is a mixer tote bag made to carry and protect the 1604 VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.
Foam padded mixer tote
Mackie 1604 VLZ Pro mixer
UPC: 889406825062
| Manufacturer | Mackie | |
|---|---|---|
| Specification | ||
| Noise | Main Mix Noise:nMain Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)nMain Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBun(20 Hz to 20 kHz bandwidth, 1/4″ main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) | |
| Total Harmonic Distortion (THD) | Microphone In to Insert Send: <0.0007%nMicrophone In to Main Out: <0.005%n(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) | |
| Crosstalk / Attenuation | Channel Mute Switch Engaged: -84 dBunChannel Gain Knob Down: -84 dBun(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4″ main out, gain @ unity) | |
| Frequency Response | Microphone Input to Main Output (Gain @ Unity):n+0, -1 dB, 20 Hz to 50 kHzn+0, -3 dB, <10 Hz to >100 kHz | |
| Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHznMicrophone input to insert send out, maximum gain | |
| Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz | |
| Maximum Level | Microphone In: +22 dBunAll Other Inputs: +22 dBunMain Mix TRS Out: +28 dBunAll Other Outputs: +22 dBu | |
| Impedance | Microphone In: 2.5 kΩnChannel Insert Return: 2.5 kΩnAll Other Inputs: 10 kΩ or greaternTape Out: 1.1 kΩnAll Other Outputs: 120 Ω | |
| Equalizer | High Shelving: ±15 dB @ 12 kHznMid Peaking: ±15 dB sweep 100 Hz to 8 kHznLow Shelving: ±15 dB @ 80 HznLow Cut Filter: 18 dB/octave, -3 dB @ 75 Hz | |
| Power Consumption | 50 W, 100 to 120 VAC, 50 to 60 Hz | |
| Operating Temperature | 32 to 104°F (0 to 40°C) | |
| Fuse Rating | 100 to 120V: 1 A slo blo, 5 x 20 mmn220 to 240V: 0.5 A slo blo, 5 x 20 mm | |
| Dimensions (H x W x D) | 17.0 x 17.3 x 5.1″ (433.0 x 440.0 x 129.0 mm) | |
| Weight | 20.0 lb (9.1 kg) | |
| Material | Interior: High-impact, high-density rigid internal foam | |
| Type of Closure | Zippers | |
| Exterior Dimensions | Not specified | |
| Interior Dimensions | Not specified | |
| Carrying/Transport Options | Hand strap | |
| Weight | Not specified |
